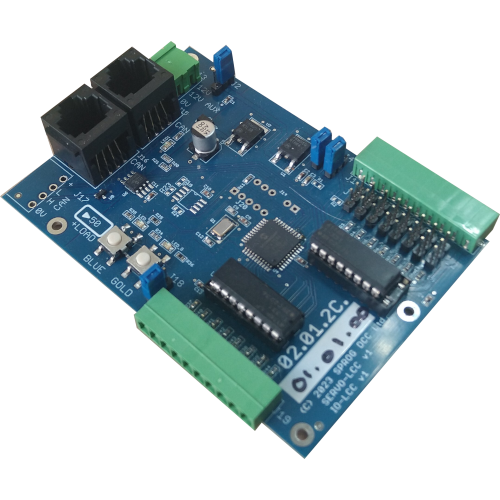

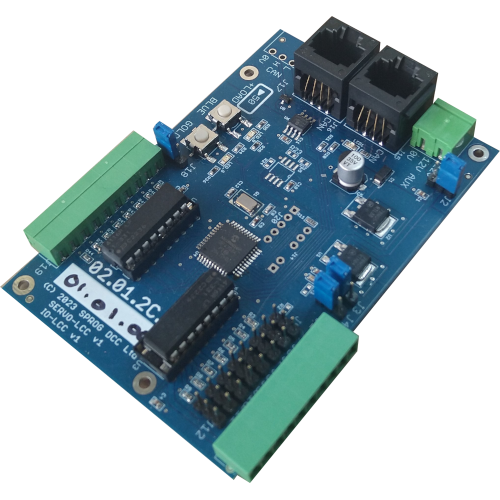

The SERVOIO-LCC is an LCC/OpenLCB node with up to 16 channels, each of which can be individually configured as an input or output.

Inputs can be a simple switch/button, or be driven other hardware, (e.g. for block detection).

Outputs can directly drive LEDs and servos. With the optional high current drivers, outpus can drive relays and other loads up to 500 mA.

Inputs can detect on, off or toggled states with configurable polarity

Outputs can be configured to turn on, off or toggle with, configurable polarity, steady state or configurable delays

The SERVOIO-LCC monitors it's own activity, allowing actions to be cascaded, e.g., for controlling multiple points/turnouts in a yard throat from a single event

You can use the SERVOIO-LCC to get information from sensors, such as block detection etc. into your LCC network, and drive actuators, such as servos and relays, from your LCC network.

More Information

Write a review

Please login or register to review

SERVOIO-LCC

  • Brand: SPROG DCC
  • Product Code: SERVOIO-LCC
  • Availability: In Stock
  • £64.80

  • Ex Tax: £54.00
